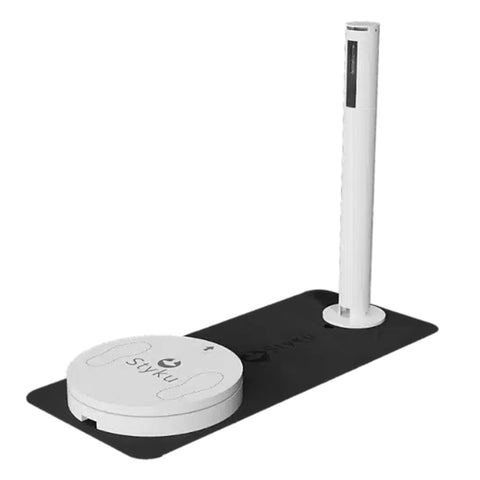

Styku Body Scanner - X2 PRO

Styku Body Scanner - X2 PRO

Regular price $ 6,800.00

IN STOCK READY TO SHIP

CONTACTLESS & AUTONOMOUS SCANNING



The X2 Pro, with a faster processor, larger display, and a higher weight limit, the X2 Pro is our most advanced and powerful unit. Features include:

  • Touchscreen Display Size: 15.6 inches (34% larger display)
  • Processing Time: ~ 90 seconds (~2x faster than X2)
  • Weight (system): 35 lbs
  • Scale Weight Limit: 550 lbs (Medical Grade Scale)
  • Space Required: 24 sq. ft.


Broaden your services with a new innovative experience.

  • Lightweight and portable
  • No handles to touch/clean or block the sensors
  • Integrated medical-grade scale
  • Setup in 2-mins

    VISUALIZE CHANGES MASKED BY SCALES

    Provide your members, clients, or patients with the a True 3D app experience.

    • Stunning 2D/3D before/after visuals
    • Rotate/Pan/Zoom to view any angle
    • Touch friendly experience
    • Integrated with fully secure, cloud-based backend.


    BUILT-IN COACHING TOOLS

    Convert leads into customers by setting fat-loss and calorie consumption goals.

    • Body Fat Ranking by Age/Gender
    • Easy-to-use sliders
    • Estimate BMR and Daily Expenditure
    • Standardize your sales process.

        DIGITAL REPORTS

        Automatically send fully customizable reports.

        • Detailed graphs show changes over time
        • Advanced reporting includes visceral fat, bone mass, and more.
        • Add your logo
        • Synced with Cloud portal.

          SCREEN FOR OBESITY RELATED DISEASES

          Assess risks of underlying conditions.

          • Based on WC and WtHR from WHO
          • Set Inch-loss (or cm-loss) goals.
          • Expand your customer base


          Specifications

          Scanner
          • Footprint: 6 ft x 4.3 ft (185 cm x 131 cm)
          • Rotating Platform Weight: 10.5kg (23lbs)
          • Sensor Tower Weight: 6kg (13lbs)
          • Power: 110-240 V
          • Setup Time: < 5 mins
          • Scan Duration: 30 - 40 seconds
          • Scan Processing Time: Under 2 Minutes
          Tower Specifications
          • Height: 117cm (46in)
          • Diameter: 25.4cm (10in)
          • Weight: 6kg (13lbs)
          • Recommended Distance: 25 in (63.5 cm)
          • Technology: Active Stereo Infrared
          Platform Specifications
          • Dimensions: 66cm x 66cm x 12.5cm (24in x 24in x 4in)
          • Weight: 10.5kg (23lbs)
          • Power: 110 or 240 V
          • Recommended Max Load: 250kg (550lbs)
          • Speed: ~35 seconds per revolution
          Measurements and Model
          • Torso Measurement Precision: +- 2.5-5mm (.1-.2in)
          • Scanning Volume: Variable
          • # of Standard Measurements: 33

          Requirements

          Computer Requirements
          • Intel i5 8th Generation (i5-8260U) 2.4 GHz or faster CPU
          • 8 GB or more DDR4 RAM
          • Dedicated USB 3.0 SuperSpeed bus & supported chipset
          • 256 GB or more hard disk storage (SSD drive recommended)
          • 1920x1080 monitor resolution
          • Operating System: 64-bit Windows 10 or above
          • Recommended: Touchscreen
          Space Requirements
          • Minimum Scanning Area: 6 ft. (185 cm) x 4.3 ft. (131 cm)*
          • Distance of Sensor Base from Turntable: 25 in. (63.5 cm)
          • Clearance Around Turntable: 14 in. (35.6 cm) on all sides*
          • Minimal lights, LED lights not recommended
          • No mirrors in the field of view
          • No direct sunlight in the field of view
          Additional on boarding fees may apply.  Please contact us for details. No promotional discount codes may be used with this product.
